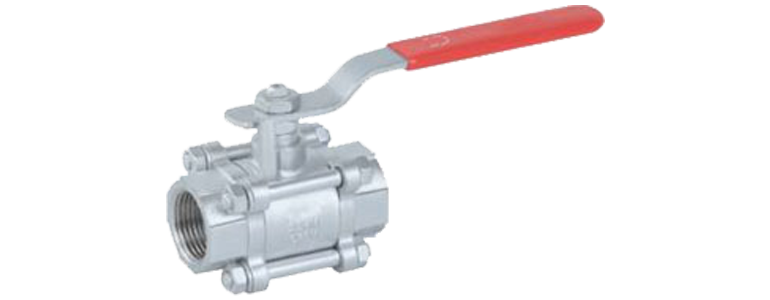

Screwed / Socket End Ball Valve
Screwed / Socket End Ball Valve
| Features | |
| Design STD | ISO 17292 |
| Face to Face STD | ASME B 16.10 |
| Flanged End | ASME B 16.5 |
| Testing STD | API 598, ISO 5208 |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| MODEL NO | BORE | END | DESIGN | CLASS | SIZE IN MM |
| 3A-1406 | Full | Screwed | Floating | 150# | 15-50 |
| 3A-1407 | Full | Scr /SW | Floating | 150# | 15-50 |
| 3A-1408 | Full | Scr /SW | Floating | 600# | 15-50 |
| 3A-1409 | Reduce | Scr /SW | Floating | 800# | 15-50 |
