Lined Ball / Wafer Check Valve & Fittings

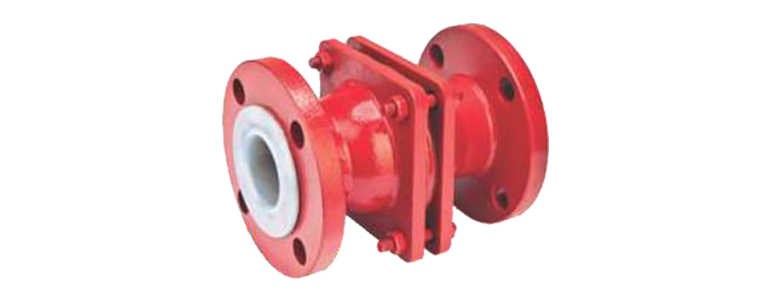

Lined Ball Check Valve
| Features | |
| Design STD | Mfg. Std. |
| Face to Face STD | ASME B 16.10 |
| Flange End | ASME B 16.5 |
| Testing STD | API 598 |
| Lining Material | PFA, FEP |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| Model No | End | Class | Size In MM |
| 3A-1860 | F/E | 150# | 15-100 |

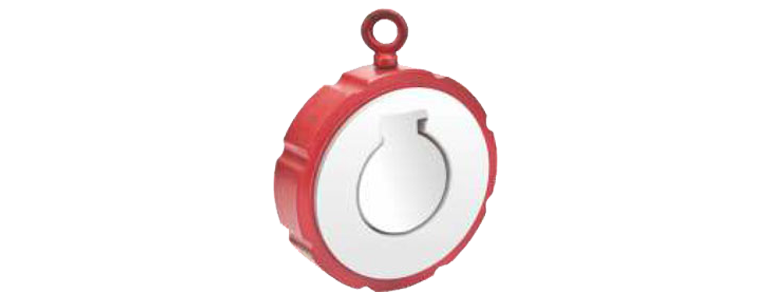

Lined Wafer Check Valve
| Features | |
| Design STD | Mfg. Std. |
| Face to Face STD | BS EN 558 [Series 20] |
| End Connection | Wafer Type |
| Testing STD | API 598 |
| Lining Material | PFA, FEP |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| Model No | End | Class | Size In MM |
| 3A-1870 | Wafer | 150# | 50-300 |

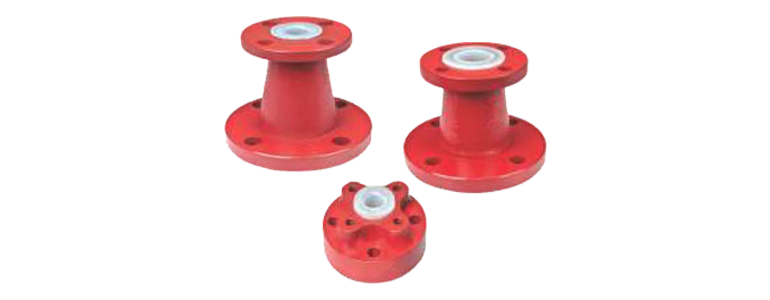

Lined Fittings
| Features | |
| Base Material | CF8, CF8M, WCB etc |
| Lining Material | PFA, FEP |
| Model No | Description | Size In MM |
| 3A-1880 | Reducer | 25-100 |
| 3A-1881 | Reducing Flange | 25-30 |
| 3A-1882 | 45 Degree Bend | 15-80 |
| 3A-1883 | 90 Degree Bend | 15-80 |
| 3A-1884 | Tee | 15-100 |
| 3A-1885 | Reducing Tee | 25-100 |
| 3A-1886 | Equal Tee | 15-100 |
