Diaphragm Valve

  1. Home
  2. Products
  3. Diaphragm Valve
Shop Detail Image 1

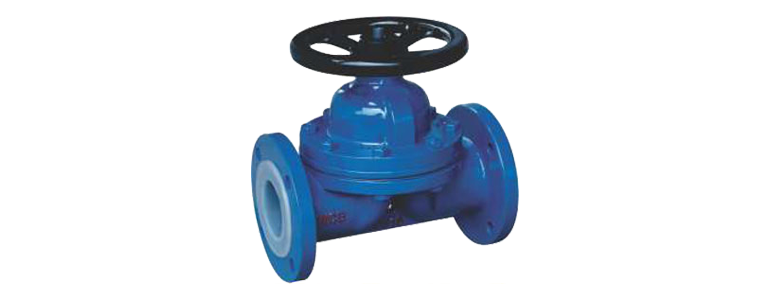

Diaphragm Valve – Weir Pattern

Features
Design & Mfg. Std MSS-SP-88/BS 5156-85
Face to Face Std BS 5156-85
End Std. ASME B 16.5/DIN EN 1092, Screwed to BSP/NPT
Testing Std. BS 5156/MSS-SP-88
Material (Body) C.I, CF8, CF8M, ASTM A216 GR. WCB
Trim AISI 410/AISI 304/AISI 316 or others to suit application
Lining PTFE/PFA/FE
Diaphragm NBR/EPDM/NEOPRENE/HYPALON/BUTYLE/PTFE BACKED BY RUBBER
Operator Manual/Pneumatic Actuator/ Electrical Actuator
Model No End Class Size In MM
3AFT-11000 F/E 150# 15-350
3AFT -11010 F/E 300# 15-300
3AFT-11020 S/E 150# 15-50
3AFT -11030 S/E 300# 15-50
