Flange End Ball Valve
3 Piece Flange End Ball Valve
| Features | |
| Design STD | ISO 17292, API 6D |
| Face to Face STD | ASME B 16.10 |
| Flanged End | ASME B 16.5 |
| Testing STD | API 598, ISO 5208 |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| MODEL NO | BORE | END | DESIGN | CLASS | SIZE IN MM |
| 3A-1400 | Full | F/E | Floating | 150# | 15-600 |
| 3A-1401 | Reduce | F/E | Floating | 150# | 25-600 |
| 3A-1402 | Full | F/E | Floating | 150# | 50-600 |
| 3A-1403 | Reduce | F/E | Floating | 150# | 50-600 |

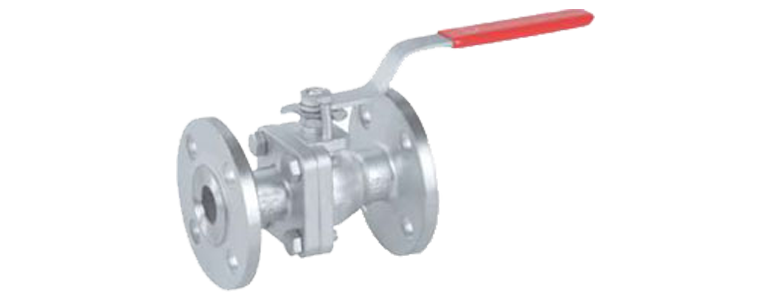

2 Piece Flange End Ball Valve
| Features | |
| Design STD | ISO 17292, API 6D |
| Face to Face STD | ASME B 16.10 |
| Flanged End | ASME B 16.5 |
| Testing STD | API 598, ISO 5208 |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| MODEL NO | BORE | END | DESIGN | CLASS | SIZE IN MM |
| 3A-1406 | Full | F/E | Floating | 150# | 15-600 |
| 3A-1407 | Reduce | F/E | Floating | 150# | 50-600 |
| 3A-1408 | Full | F/E | Floating | 150# | 50-600 |
| 3A-1409 | Full | F/E | Floating | 300# | 15-150 |
| 3A-1410 | Reduce | F/E | Floating | 300# | 50-150 |
| 3A-1411 | Full | F/E | Floating | 300# | 50-600 |
| 3A-1412 | Reduce | F/E | Floating | 300# | 50-600 |
| 3A-1413 | Full | F/E | Floating | 600# | 65-600 |
| 3A-1414 | Reduce | F/E | Floating | 600# | 65-600 |
